CS-HH

HDMI 1080p Enhancer

• Built-in TMDS equalization and CDR (Clock Rate Recovery) for extended HDMI cable distance

• Resolutions support:

— HDTV: 480i to 1080p@24/50/60 Hz

— PC: VGA to WUXGA (RB)

• Capable of receiving and transmitting HDMI signals at 2.25 Gbps bandwidth

• Requires HDMI source devices to output power to the unit over HDMI cable

• Supported HDMI cable distance: 15 meters (input and output)

• Compact design

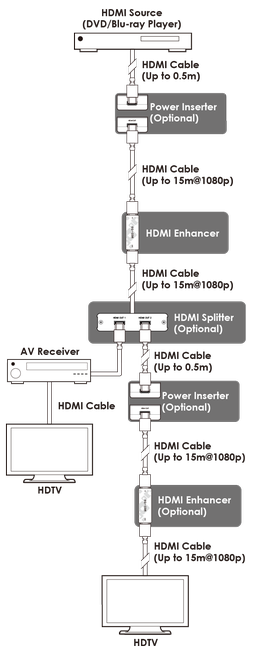

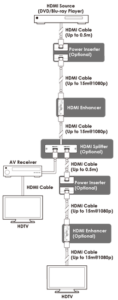

Note: For devices that do not support this, an HDMI Power Inserter can be used in-line between the source device and the unit to provide power.

This HDMI™ to HDMI Enhancer can extend or cascade HDMI digital audio and video signals without signal loss. It is capable of receiving and transmitting 2.25 Gbps bandwidth rate and supports resolutions up to 1080p@60 Hz. It has the added benefit of a built-in equalizer and CDR (Clock Data Recovery) which can provide long cable support even with Deep Color resolutions. The unit can be powered by the HDMI output of suitably equipped source equipment (eliminating the need for a power supply) or if the HDMI source does not provide a suitable 5V power supply an HDMI Power Inserter can be used.

Frequency Bandwidth	2.25 Gbps (single link)
Input Port	1×HDMI (Female)
Output port	1×HDMI (Female)
Output Resolution	HDTV: 480i ~1080p@24/50/60 Hz PC: VGA~WUXGA (RB)
Input Cable Distance	15m@8/12-bit
Output Cable Distance	15m@8/12-bit
ESD Protection	Human Body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Dimensions	65 mm (W)×24 mm (D)×10 mm (H)
Weight	30 g
Chassis Material	Plastic
Silkscreen Color	Black
Operating Temperature	0˚C~40˚C/32˚F ~ 104˚F
Storage temperature	−20˚C~60˚C/−4˚F~140˚F
Relative Humidity	20~90 % RH (no condensation)
Power Consumption	2 W (Max)
