BAT Converters

Low Heat, High-Performance Converters

Superior Signal Quality

BAT Converters offer high-quality signal with the lowest jitter.

Enjoy long SDI signal reach with low noise.

There are four models of BAT Converters from which you can choose depending on your needs.

Audio Versatility

Audio sampling rates are converted to 48 KHz. (16~192 KHz to 48 KHz)

Wide Range Power Input

You can use any power ranging from 7v ~ 15v. Gives you more freedom in electrical power voltage.

Signal Strength Longevity

BAT Converters stretch SDI signals up to 200m long allowing more distance between the input source and the decoder.

Low Power Consumption

The power consumption of BAT Converters is very efficient. All BAT series converters consume less than 3 watts of power while operating.

Global Power Adaptor

All ez-Converters come with AC/DC power adaptor.

With three different types of replaceable plugs, make your work easy wherever you are.

Reliable Converters

Converters are being used in many broadcasting environments nowadays. It is essential to work with converters that function properly while providing extra functionalities. BAT Converters are perfect for such projects with low power consumption and low noise.

BAT Converters

Low Heat, High-Performance Converters

Tech Specs

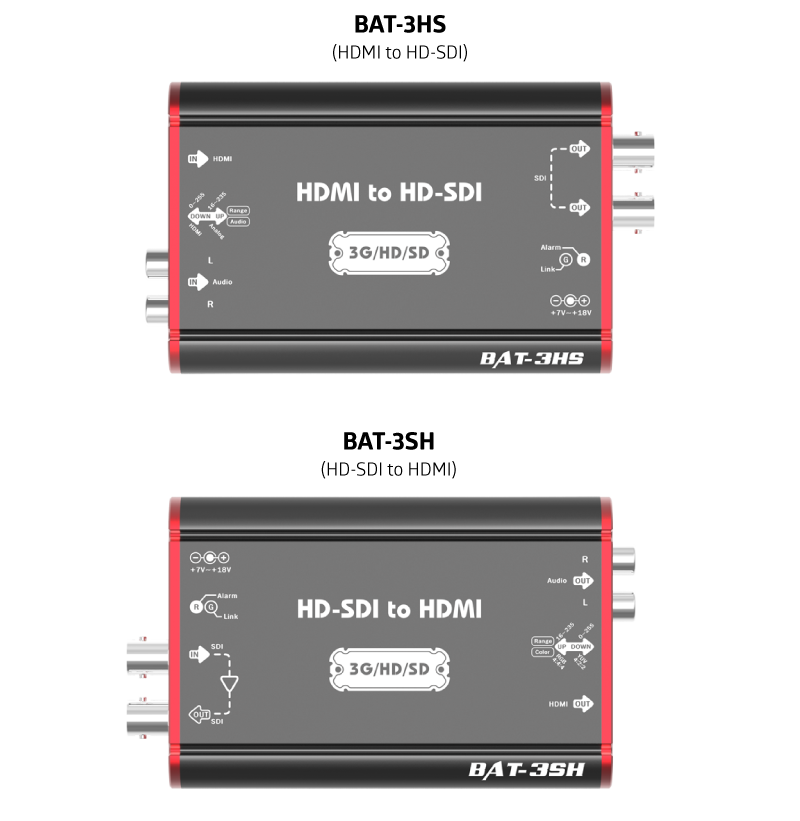

BAT-HS (HDMI to HD-SDI)

Supported Video Formats	720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50 1280 x 720p @ 50, 1280 x 720p @ 59.94/60 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/30 1920 x 1080p @ 50, 1920 x 1080p @ 59.94/60
Video Inputs	HDMI with embedded audio & auto mute when DVI input
Video Outputs	SMPTE-259/272/274/292/296/299/424/425 3G/HD/SD-SDI, 2 x BNC
Audio Outputs	Supports 8 audio channels (4 stereo pairs) – when the input audio sample rate is 48kHz – Supports 2 audio channels (1 stereo pair) – Auto detection of the input audio sample rate
Power Input	DC +7V to +18V 0.25A(250mA) when it's +12V
Power Consumption	3W (max.)
Operation Temperature	0~45℃
Dimension	116 x 76.8 x 28.4 mm
Weight	0.22 kg (0.49 lbs)

BAT-SH (HD-SDI to HDMI)

Supported Video Formats	720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50 1280 x 720p @ 50, 1280 x 720p @ 59.94/60 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/30 1920 x 1080p @ 50, 1920 x 1080p @ 59.94/60
Video Inputs	3G, HD, and SD-SDI (auto-selected), SMPTE-259/272/274/292/296/299/424/425 1x BNC input, 1x BNC loop-through output
Video Outputs	HDMI v1.3a, 24/30/36 bits per pixel, RGB, 2.25Gbs, SD, HD, 1080p50/60 HDMI Standard Type A connector
Audio Outputs	HDMI embedded audio, 24 bit, 2 or 8 channels RCA-style analog outputs at -10dBV
Power Input	DC +7V to +18V 0.25A(250mA) when it's +12V
Power Consumption	3W (max.)
Operation Temperature	0~45℃
Dimension	116 x 76.8 x 28.4 mm
Weight	0.22 kg (0.49 lbs)

BAT-AS (Analog to HD-SDI)

Supported Video Formats	720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50 1280 x 720p @ 50, 1280 x 720p @ 59.94/60 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/3-
Video Inputs	HD Component (YPbPr) or SD Component/Composite/S-Video, 3x BNC
Video Outputs	SMPTE-259/272/274/292/296/299 HD/SD-SDI with embedded audio outputs, 1 x BNC
Audio Outputs	2 channels unbalanced, 2x RCA
Video ADC	12-Bits
Audio ADC	24-Bits, 48kHz
Power Input	DC +7V to +15V 0.33A(333mA) when it's +12V
Power Consumption	4W (max.)
Operation Temperature	0~45℃
Dimension	131 x 98.8 x 28.4 mm
Weight	0.37 kg (0.82 lbs)

BAT-SA (HD-SDI to Analog)

Supported Video Formats	720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50 1280 x 720p @ 50, 1280 x 720p @ 59.94/60 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/30
Video Inputs	HD and SD-SDI (auto-selected), SMPTE-259/272/274/292/296/299/424/425 1x BNC input, 1x BNC loop-through output
Video Outputs	Selectable Component (YPbPr) or Composite (CVBS and S-Video) by DIP switch NTSC and PAL support 3x BNC output
Audio Outputs	2 channels RCA-style analog outputs at -10dBv
Power Input	DC +7V to +15V 0.33A(333mA) when it's +12V
Power Consumption	4W (max.)
Operation Temperature	0~45℃
Dimension	131 x 98.8 x 28.4 mm
Weight	0.37 kg (0.82 lbs)
