BEM-242

OVERVIEW

BEM-242 is a cost-effective 24" LED broadcast monitor. It has color-calibrated screen with selectable color temperatures. Also, an optional tilting stand is selectable on purchase.

FEATURES

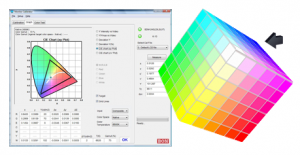

Color-Calibrated Screen

The screen is calibrated to reproduce precise colors offering selectable color temperatures such as 3200K, 5600K, 6500K, 9300K.

Signal Analysis Features

SDI Waveform/Vectorscope, R/G/B or Gray only modes, and audio level meters are included. Three function buttons in front are user-assignable. Markers and safety area are displayed as user selected in the menu to check the sides and edges of taken pictures.

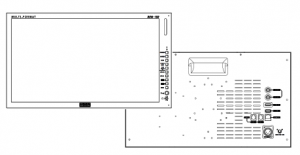

Lightweight and Thinner Volume

It is easy to carry and install the monitor anywhere due to the thin frame and light weight.

    • 3G SDI Support

    • 10-bit Signal Processor

    • Monitor Control/Update via RS-422

    • Waveform (SDI Only)

    • Vector scope (SDI Only)

    • Focus Assistance(SDI Only)

    • Exposure Range Check(SDI Only)

    • False Color (SDI Only)

    • Menu Setting Copy via USB Flash Memory

    • V-CHIP display (SDI Only)

    • UMD Mode Display

    • Various Markers(EBU, 4:3, 16:9, 1.85:1, 2.35:1, etc)

    • Zero/Under/Over Scan

    • H/V Delay(SDI)

    • Pixel to Pixel

    • R/G/B Only (HDMI)

    • R/G/B/Gray Only (SDI)

    • Closed Caption (CEA-608/708, SDI Only)

    • Time Code Display (ATC_HD-SDI,DVITC_SD-SDI) (SDI Only)

    • De-embedded 8~16ch Audio Level Meter(SDI)

    • 2CH Audio Level Meter(HDMI)

    • Remote Control via GPI(RJ-45) Port

    • 3 Color TALLY Lamp

    • Rack & VESA Mount (Option)

    • R,G,B, and White Internal Patterns Display for Color Test (SDI Only)

  • Picture in Picture (SDI<->HDMI)

LCD
Size 24"
Resolution 1920 x 1080
Pixel Pitch 0.27675mm
Color 16.7M(8bit) Colors
Viewing Angle(deg) 178(H), 178(V)
Luminance of White 250 cd/m²
Contrast 3000 : 1
Back Light LED
Display Area (H x V) 531.36 x 298.89mm (20.9 x 11.8 inches)
Input
1 x SDI HD/SD-SDI, 3G/1.485G/270M
1 x HDMI HDMI1.3 (with HDCP v.1.3), 19pin Female
Output
1 x SDI SDI Loop Through
Input Signal Format
SMPTE 425M AB
Level A MS1, MS2, MS3, MS4
Level B MS1, MS2, MS3, MS4
2K, SMPTE 428M 2048*1080,24p/psf,23.98p/psf
SMPTE 274M/292M
1920*1080i (60, 59.94, 50)
1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)
SMPTE 296M 1280*720p/60,59.94,50
SMPTE 260M 1920*1035i/60,59.94
SMPTE 125M/259M 720*480i/60,59.94, 720*576i/50
ITU R-BT.656 576i(50)
Audio
1 x Phone Jack Out Headphone Out(Stereo)
General
1 x RJ-45 GPI-7 Port for control
2 x RJ-11 RS-422, RJ-11P Jack
1x USB For firmware update
Power Requirements DC 12V/24V
Power Consumption 40W
Operating Temperature 0°C ~ 40°C
Operating Humidity 20% ~ 80% RH
Weight 7 kg / 15.0 lbs (Shipping Weight: 10.5 kg)
Dimensions(WxHxD) Main Body : 583.6×330.6×38.1 mm / 22.8×12.9×1.5 inches
Accessories • Power Cable • AC-Adapter • Manual • Cleaner
Options
• Rack Mount kit  • Sun Hood   •Screen Proctector  •Wall Bracket
• Carrying Case  • V-Battery Mount  • Anton Bauer Battery Mount
