BSM-183N3G

OVERVIEW

BSM-183N3G is an 18.5" broadcast monitor that can accept 3G SDI signal. It reproduces high quality picture with wide color range and smooth gradient.

FEATURES

3G SDI

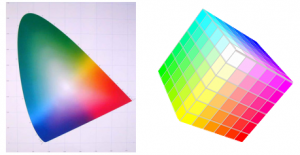

Has two SDI input ports with 3G SDI support. Color temperatures are selectable and gamma correction are applied to reproduce precise colors & gradients.

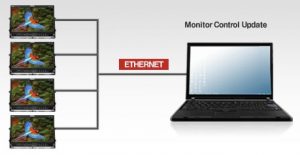

Control via Network / Menu Setting Copy

Users can update firmware or control monitor via RS-422 or ethernet port. Menu setting can be copied to other monitors with USB stick.

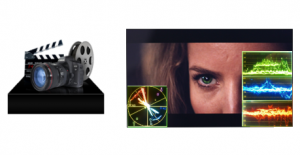

Waveform/Vectorscope

Luminance range and color range are monitorable with Waveform/Vectorscope. Users can monitor exact levels of Y/Cb/Cr/R/G/B.

    • Waveform/Vectorscope
    • Focus Assistance
    • False Color
    • Closed Caption (CEA-608/708)
    • Time Code Display
    • 8~16ch Audio Level Meter
    • Exposure Range Check
    • UMD/IMD Mode (supports TSL 4.0)
    • AFD & V-CHIP(SDI Only)
    • Various Markers
    • R,G,B or Gray Only Display
    • H/V Delay
    • Pixel-to-Pixel View
    • Zero/Under/Over Scan
    • Freeze Frame
    • R/G/B/W Internal Patterns
    • Tally Display
    • Monitor Controllable via Ethernet
    • Menu Setting Transfer with USB
    • SDI & CVBS PIP
    • Color Calibration Software(Optional, Training Required)
  • Rack & VESA Mount (Option)
LCD
Size 18.5"
Resolution 1366 x 768
Pixel Pitch 0.1 * 0.3mm
Color 16.7M(8bit) Colors
Viewing Angle 170(H), 160(V)
Response Time 9ms
Luminance of White 250 cd/m²
Contrast 1000 : 1
Back Light LED
Display Area (H x V) 409.8 x 230.4 mm (16.1 x 9.0 inches)
Input
2 x SDI HD/SD-SDI, 3G/1.485G/270M
1 x Analog Analog(YPbPr/CVBS/S-Video/RGB)
1 x HDMI HDMI (with HDCP v.1.1), 19pin Female
1 x DVI DVI-I, 24pin, Female
1 x VGA DVI-I to VGA Jack (with gender)
Output
2 x SDI SDI-1/2 Active Loop Output
1 x Analog Analog(YPbPr/CVBS/S-Video/RGB)
Analog Input Level
Composite 1.0Vp-p(with sync), NTSC/PAL
YC(S-Video) Y :1.0Vp-p, C:0.286Vp-p
Component(Y/Pb/Pr) Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p
Component (R/G/B) G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-p
PC-RGB,Sync Level R, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p
Input Signal Format
SMPTE 425M AB
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF
/25sF/24sF/23.98sF)1080i (60/59.94/50)
2K, SMPTE 428M 2048*1080,24p/psf,23.98p/psf
SMPTE 274M/292M
1920*1080i (60, 59.94, 50)
1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)
SMPTE 296M 1280*720p/60,59.94,50
SMPTE 260M 1920*1035i/60,59.94
SMPTE 125M/259M 720*480i/60,59.94, 720*576i/50
ITU R-BT.656 576i(50)
Composite 720*480i(NTSC)/576i(PAL)
Component, VGA 480i/p ~ 1920 * 1080i/p
DVI Signal 480i/p ~ 1920 * 1080i/p
HDMI Digital ~ 1920 * 1200i/p(de-embedded Audio 2ch)
Audio Input/Output
1 x Phone Jack In Line In(Stereo)
2 x Phone Jack Out Line Out(Rear,Stereo), Headphone Out(Front, Stereo)
2 x Speaker Out 2W+2W, Stereo
General
1 x Ethernet Control/Update, GPI-7 Port, RJ-45P Jack
2 x GPIO GPI-7 Port, RJ-45P Jack
2 x Serial RS-422, RJ-11P Jack
1x USB For firmware update
Power Requirements DC 12V/24V
Power Consumption 45W
Operating Temperature 0°C ~ 40°C (32°F~104°F)
Operating Humidity 20% ~ 80% RH
Weight 5kg/12lbs (Shipping Weight:8kg)
Dimensions(WxHxD)
Main Body : 438.4 x 310.8 x 70.4(mm)
with stand : 473.4 x 326.3 x 110(mm)
Accessories • Manual(CD) • Cleaner • Power Cable  • DVI-to-VGA Gender
Options • Acrylic protector   • Sun Hood   • Carrying Case

•  Rack Mount Kit • V-Mount   • Antonbauer

• WALL Bracket
