CH-1539TXPLPD

This 4×1 Multi-Format to HDBaseT Switch is a 4K@60Hz (4:4:4) switcher featuring HDMI, DisplayPort, USB Type-C, and VGA with stereo inputs which are automatically converted to the standard HDBaseT format for use with a compatible receiver. The HDMI, DisplayPort and USB-C inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit) and the VGA input supports resolutions up to WUXGA (RB). With the use of the 3.5mm audio input, stereo audio can be embedded with the VGA source as well. Despite HDBaseT’s 10.2Gbps bandwidth limitation, high bandwidth 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be supported and will be automatically converted to 1080p when necessary. Signal management features such as automatic switching based on input signal and hot plug detection enable convenient hands-free operation. Additional functionality such as EDID management, HDCP management and basic signal event automation (which can send customized CEC commands to the display automatically) is also available. The USB Type-C input can provide power (up to 60W) to any connected device and the HDBaseT output provides PoH (Power over HDBaseT) to power compatible receivers, providing greater flexibility in installations. Control is provided via a front panel button, WebGUI, Telnet, and RS-232.

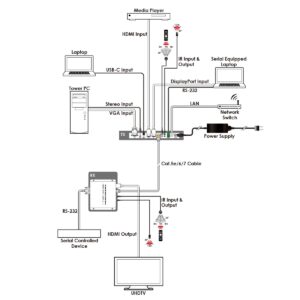

Interfaces
Input Port	1 × HDMI (Type-A) 1 × DisplayPort 1 × USB (Type-C) 1 × VGA (HD-15) 1 × Stereo Audio (3.5mm)
Output Port	1 × HDBaseT (RJ-45)
Pass-through Port	1 × IR Extender (3.5mm) 1 × IR Blaster (3.5mm) 1 × RS-232 (3-pin Terminal Block
Service Port	1 × USB 2.0 (Type-A)

Video
HDMI Compliance	HDMI 2.0
HDCP Compliance	2.2
Input Signal Types	4096 x 2160p@60 8bit YUV 4:4:4
Output Signal Type	4096 x 2160p@60 8bit YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60
	DP	4096×2160p@60
	USB-C	4096×2160p@60
	VGA	1920×1200p@60RB
Maximum Output	HDMI	4096×2160p@30 1920×1200p@60RB

Audio
Input Signal Types	HDMI, Unbalanced Stereo
Output Signal Types	HDBaseT
Digital Formats	HDMI	8CH LPCM
	HDBaseT	8CH LPCM

Power
Power Supply	24V/3.75A
Power Consumption	82W (Full load)

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×116mm [All Inclusive]
Weight	657g

Ordering Information
Model No.	Product Description
CH-1539TXPLPD	D UHD+ HDMI/DP/VGA/USB Type-C to HDBaseT Switcher
CH-1527RXPL	HDMI over HDBaseT Receiver with IR, RS-232 & PoH (PD)
CH-1527RXPLV	V UHD+ HDMI over HDBaseT Receiver with HDR
