CH-1602RX

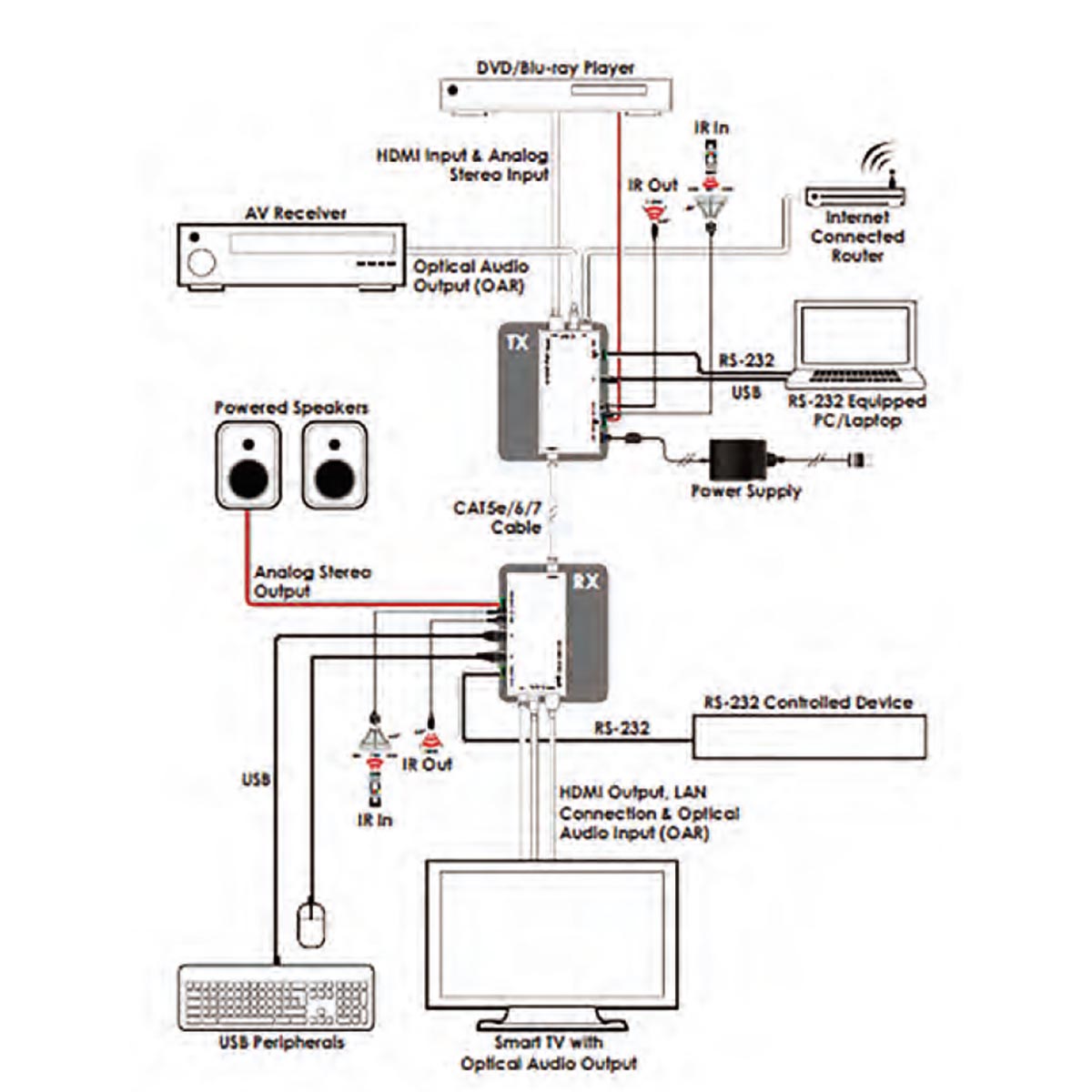

This HDBaseT 2.0 Transmitter and Receiver set can send uncompressed UHD video and audio over a single Cat.5e/6/7 cable up to 100m. It has the added benefit of extending control and communication signals through the built-in Ethernet, USB, RS-232 and IR ports. Independent external digital and analog audio transmission capability gives users the extra convenience of additional audio connections. This system supports connecting any standard USB 2.0 host to the Transmitter, enabling the extension of the USB connection to up to 2 USB ports located on the Receiver, allowing it to act like a USB hub. The integrated 48V PoH (Power over HDBaseT) support provides power to the Receiver (PD) from the Transmitter (PSE), eliminating the need for a separate power supply for the Receiver. The ultra-thin mechanical design allows for flexibility in mounting locations, saving space and making your presentation space orderly and tidy.

Interfaces
Input Port	1 HDBaseT(RJ-45) 1 Optical Audio (TOSLINK) 1 IR Extender (3.5mm)
Output Port	1 HDMI (Type-A) 2 USB 2.0 (Type A) 1 Stereo Audio (Terminal Block) 1 LAN (RJ45) 1 IR Blaster (3.5mm) 1 RS-232 (Terminal Block)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDBaseT	4096x2160p@60 YUV 4:2:0
Maximum Output	HDMI	4096x2160p@60 YUV 4:2:0

Power
Power Supply	48VDC/0.83A (US/EU standards, CE/FCC/ UL certified)
Power Consumption	16.72W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	180mm×16mm×80mm [Case Only] 180mm×16mm×80mm [All Inclusive]
Weight	356g

Field Firmware Update
Interfaces	PC

Ordering Information
Model No.	Product Description
CH-1602RX	HDMI over HDBaseT Receiver with Optical Audio Return (OAR)
CH-1602TX	HDMI over HDBaseT Transmitter with Optical Audio Return (OAR)
