CH-V501TR

HDMI over IP Transceiver (Copper Version)

Visually lossless compression with zero latency
Video wall and multi viewer supported (requires optional control center/ software)
Independent breakaway A/V matrix switching (requires optional control center/software)
Pass-through of 10/12-bit HDR sources (Point-to-point and Genlock modes only)
Pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI sources
Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center/software)
Unit can be powered directly by PoE (802.3at) when connected to a 10-Gigabit Ethernet
Supports the use of an external control center or control software to provide expanded functionality (Contact your authorized dealer for more information)

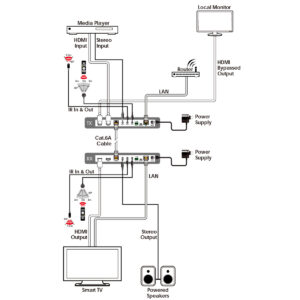

This Transceiver is designed for high-quality, IP routable, AV extension with zero latency. Each single Transceiver can be confi gured as either a Transmitter or a Receiver depends the requirement of installation facility. The 4K@60 high quality video with HDR 10 bits and multi-channel HD Bitstream audio are able to transmit in pass through mode over Cat.6A up to 100m extension.

Interfaces
Input Port	1 HDMI (Type A)
Output Port	1 HDMI (Type A)
Bi-directional Port	1 10GbE LAN (RJ-45)
Control I/O	1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (3-pin Terminal Block) 1 Ethernet (RJ-45)
Audio	1 Unbalanced Stereo (3.5mm) Transmitter: Audio In or Out (depends confi guration) Receiver: Audio Out
Service Port	1 USB (Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160p@60 8bit YUV4:4:4, HDR10
Output Signal Type	4096x2160p@60 8bit YUV4:4:4, HDR10

Resolutions
Maximum Input	HDMI	4096×2160p@60 2560×1600p@60RB
	Ethernet	4096×2160p@60 2560×1600p@60RB
Maximum Output	HDMI	4096×2160p@60 2560×1600p@60RB
	Ethernet	4096×2160p@60 2560×1600p@60RB

Audio
Digital Formats	HDMI	8CH LPCM, Bitstream, HD Bitstream
Analog Formats	Unbalanced	2 Channel
Line Level	Frequency Response: < ±0.5dB (20Hz to 20kHz) THD: < 0.02% (20Hz to 20kHz) S/N Ratio: > 80dB (1kHz with 0dBFS) Crosstalk: < −80dB (10kHz, Vin=0dBFS)

Power
Power Supply	12V/3A (Locking)
Power Consumption	30W (Full load)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×116.7mm [All Inclusive]
Weight	552g

Ordering Information
Model No.	Product Description
CH-V501TR	HDMI over IP Transceiver (Copper Version)
CDPS-CS7-S	AV over IP Master Controller
