CHDBT-1H1CE

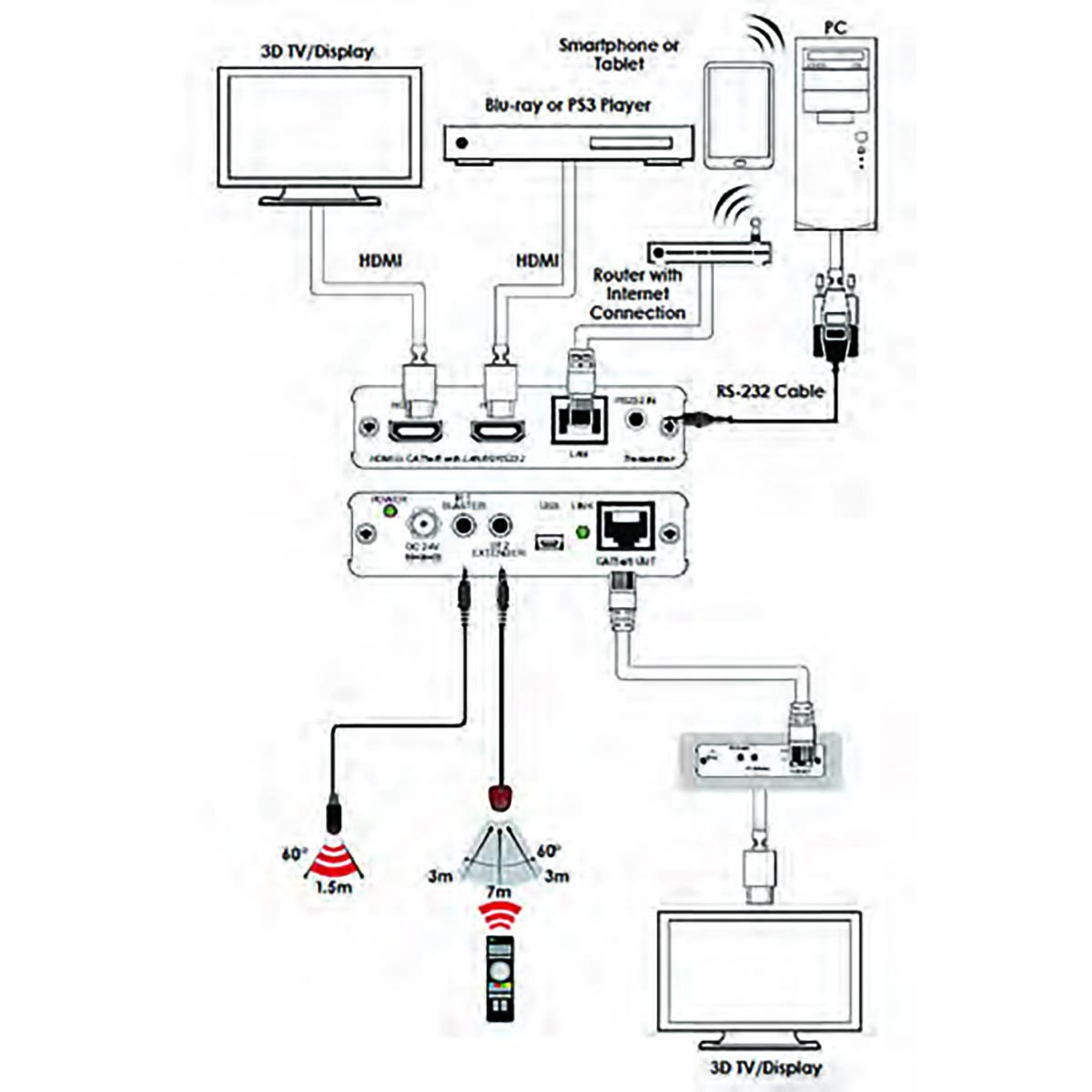

The HDMI over HDMI and CAT5e/6/7 Transmitter can convert a single HDMI input, 2-way IR and RS-232 control and LAN serving to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 100 meters. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Bidirectional Power over Cable (PoC) function provides greater flexibility in installations.

Interfaces
Input Port	1 HDMI (Type-A)
Output Port	1 HDMI (Type-A) 1 HDBaseT (RJ-45)
Pass-through Port	1 RS-232 (3.5mm) 1 IR IN (3.5mm) 1 IR OUT (3.5mm) 1 LAN(RJ-45)
Service Port	1 USB(Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096×2160@60Hz YUV 4:2:0 8bit
Output Saignal Type	4K@60 4:2:0 R

Resolutions
Maximum Input	HDMI	4096×2160p@60 4:2:0
Maximum Output	HDMI	4096×2160p@60 4:2:0
	HDBaseT	4096×2160p@60 4:2:0

Audio
	HDMI	LPCM(8CH), Bitstream, HD Bitstream
	HDBase T	LPCM(8CH), Bitstream, HD Bitstream

Power
Power Supply	24V / 1.25A DC
Power Consumption	6.3W

Enclosure
Chassis Material	Metal
Chassis Color	Gray
Dimensions (W×H×D)	102 mm x 25 mm x 102 mm [Case Only] 102 mm x 25 mm x 110 mm [All Inclusive]
Weight	252g

Field Firmware Update
Interface	PC
