CLUX-41N

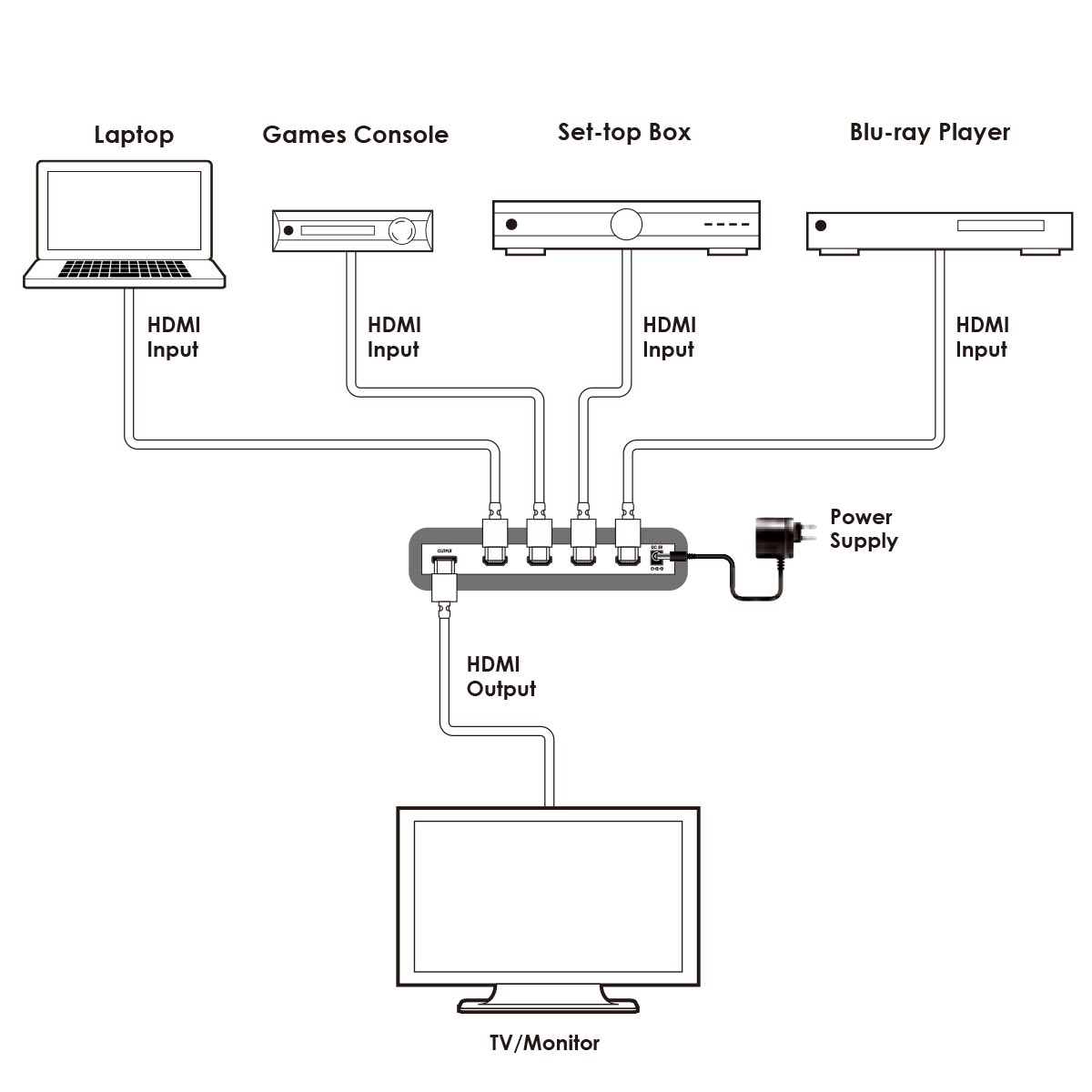

The HDMI 4 to 1 Switcher allows 4 HDMI sources to be connected to the same HDMI TV/Monitor input. It has IR, automatic and manual input selection and a ‘last memory’ function that remembers the last input selection used. The EDID bypass function ensures the best resolution. The switcher is also DVI compatible with the use of DVI to HDMI adaptor.

Interfaces
Input Port	4HDMI (Type-A)
Output Port	1HDMI (Type-A)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	1.4
Input Signal Types	1080p60 12-bit
Output Signal Type	1080p60 12-bit

Resolutions
Maximum Input	HDMI	1920×1200p@60RB
Maximum Output	HDMI	1920×1200p@60RB

Power
Power Supply	5 V/2.6 A DC
Power Consumption	5.7 W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	200 mm × 25 mm × 104 mm
Weight	268g

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CLUX-41N	HDMI 4 to 1 Switcher
