DigiLink / InfinityLink DLC910

DLC910 Quad SD HD 3G SDI Multiviewer

Description

The DLC910 adds full featured 4-Channel SD-HD-3G SDI multiviewer capabilities to the DigiLink media transport platform.  Consuming a single slot in any DigiLink chassis, the DLC910 seamlessly integrates into the platform enabling users to monitor the status of up to 4 independent SD, HD, and 3G-SDI video and audio channels. A full featured multiviewer, the DLC910 includes format auto sense, audio monitoring with visual activity detectors, 16 character labels per quadrant, automatic aspect ratio, and quad or full screen displays.  Wide options for inputs and outputs are available using external BNCs, optical or HDMI SFPs, or other modules in a chassis using DigiLink’s innovative integrated routing capabilities.

Features

• 4 independent video channels
• Auto detectand display input formats

Compatible with all DigiLink chassis

Inputs supports most SDI formats

• 3G-SDI (SMPTE 424M)
• HD-SDI (SMPTE 292M)
• SD-SDI (SMPTE 259M)

User programmable outputs

• 1080i, 720p, 1080p
• 59.94 or 50Hz

Flexible I/O options

• Optical (via SFP)
• Rear panel BNC
• HDMI (via SFP)
• HD-BNC (via SFP)
• Other modules in DigiLink chassis

Includes audio monitoring

• Audio pass through in full screen mode
• Embedded audio detectors and on-screen level indicators

Full-featured

• 16 character labels per quadrant
• Automatic aspect ratio output
• Front and rear panel status LEDs
• Display of input signal format shown on each quadrant
• Fixed quad split or full screens
• Full screen mode selectable through DL Manager, SNMP, or front push button switch
• Field upgradable

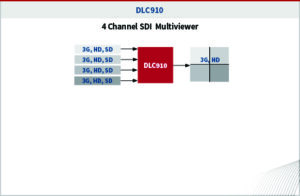

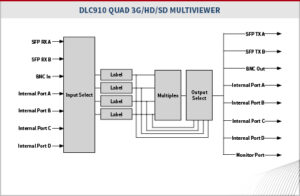

Diagrams
