HLE-1853G

The HLE-1853G is a Multi-Format LCD Monitor. It employs High-resolution WXGA (1366 x 768) LCD Panel with LED backlight. It comes with 3G-SDI, HDMI Input as standard. The HLE-1853G is an excellent and affordable solution for various broadcast monitoring applications.

18.5-inch 1366 x 768 WXGA Resolution
Matte finish LCD Surface
LED Backlight
Integrated WFM, Vector Scope and Test Pattern Generator
Embedded Audio Level Meter
Supports AC/DC Battery Operation

RATINGS / PERFORMANCE HLE-1853G
Screen Size	18.5-inch
Screen Resolution	WXGA (16:9) 1366 x 768
Brightness	250 cd/m²
Contrast Ratio (Typ)	1000:1
Colour Depth	16.77 million (RGB 8-bit)
View Angle (Vertical / Horizontal, Typ)	178°
Power Requirement AC	available
Power Requirement DC (XLR 4-Pin D Cinlet)	available
Power Consumption	Approx. 60 W
Dimensions	W 433 x H 308 x D 61 mm
Rack Units	7U
Weight (Approx.)	6.5 kg

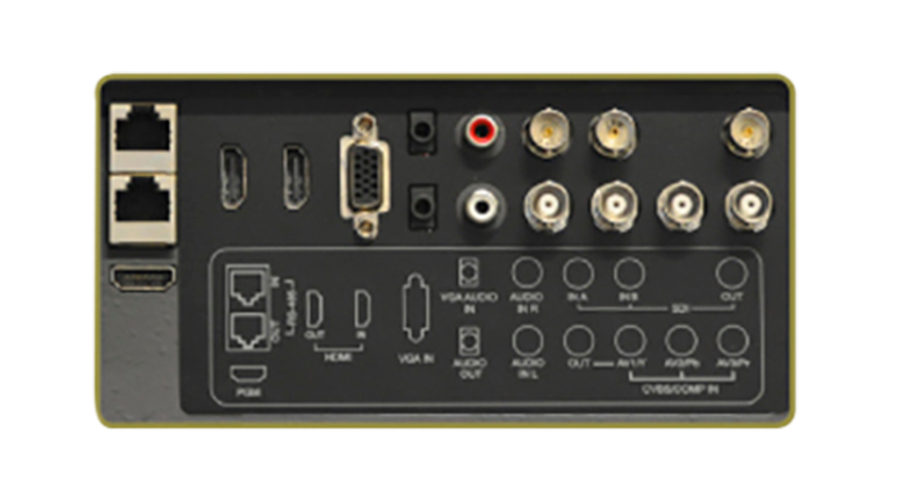

Multi-SDI (incl. 3G-SDI)	2 Inputs / 1 Output
VBS	2 Inputs / 1 Output
RGB/YPbPr	1 Input
Analog PC	1 Input
DVI-D	1 Input
HDMI	1 Input / 1 Output
WFM	available
Vector Scope	available
Split Screen	available
Dot-by-Dot	available
