KL-3T

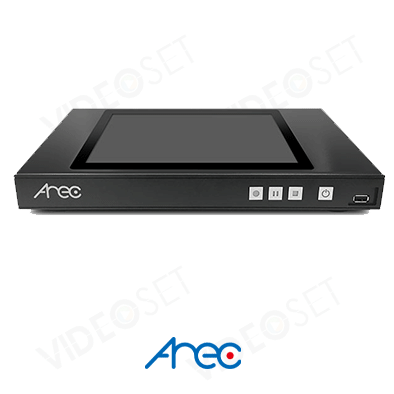

KL-3T Touchscreen Portable Media Station

Product Highlights

  • All-in-One Device with 10.1” Touch Panel to Offer Up to 3 Full HD Video Sources Capturing, Mixing, Switching, Recording and Live Streaming
  • Portable Design for Easy Move and Place
  • HDMI, VGA, RJ-45 and Streaming Inputs
  • AREC Online Director: Easily Add Background Images, Overlays, Subtitle, and Change Video Layouts in Video Making
  • Broadcast Your Mixed Video to up to 2 Platforms Simultaneously
  • Built-In Video Manager: Remote Management
  • Available APIs for Software Server Integration

FEATURES

CAPTURE UP TO 3 VIDEO SOURCES AT THE SAME TIME

KL-3T supports capturing up to 3 video sources through HDMI / VGA/ RJ45 interfaces at the same time, it is compatible with network cameras, laptops, PCs, digital microscopes etc. With audio support, KL-3T ccan mix audio via HDMI, 3.5mm stereo audio jacks and balanced input with a 6-pin Phoenix connector.

feature thumb 1

PORTABLE DESIGN FOR EASY MOVE

With 10.1” LCD screen, AREC KL-3T is a portable and all-in-one Media Station, allowing users to simultaneously capture, switch, mix, stream and record live/multi-sources events in demanding portable applications.*
*KL Travel Case is the optional accessory.

feature thumb 1

TOUCH-FRIENDLY ON-SCREEN GRAPHICAL USER INTERFACE

Coming with 10.1"touch screen and built-in a touch-friendly graphical user interface (GUI), KL-3T allows users to start or stop recording/streaming, change recording layouts, and switch video content with easier control.

feature thumb 1

ADDING TITLES & GRAPHICS TO YOUR VIDEO

With KL-3T, users can easily switch and mix between sources, add or remove logos, backgrounds, overlay graphics, and subtitles to create their own custom and professional lecture video.



REMOTE MANAGEMENT. SIMPLE TO INTEGRfeature thumb 1ATE

With the built-in Video Manager, videos stored in the AREC Media Station can be managed remotely. Designed to work in network environment, AREC Media Station has an HTTP API that provides access to many functions in Media Station. All of the video content, metadata, and thumbnail can be delivered seamlessly for the server software integration.

feature thumb 1

RECORDING AND BACKUP

KL-3T is integrated with Panopto, Kaltura, and Opencast platforms. It can also record and save hundreds of hours recording videos with internal 1TB hard drive. KL-3T supports automatic backup and upload of recordings after their completion to AREC MediaCenter, FTP, and SFTP servers, and can use NAS for storage.

feature thumb 1

SPECIFICATIONS

MODEL NAME AREC KL-3T
MAX. VIDEO-IN CHANNELS 3
VIDEO INPUT INTERFACE HDMI*2 / VGA*2 / RJ-45*2
AUDIO INPUT INTERFACE 3.5mm Stereo: 2 channels;
HDMI: 2 channels;
Balanced audio-in with a 6-pin Phoenix connector
VIDEO ENCODING RESOLUTION Max. 1080p (640×360 ~ 1920×1080). A variety of resolution can be selected
VIDEO OUTPUTS FOR LOCAL DISPLAY HDMI*1 (supports VGA output with bundled HDMI to VGA adapter)
AUDIO OUTPUTS 3.5mm Stereo line out: 1 channel;
HDMI: 1 channel
LOCAL STORAGE 1TB 2.5” SATA ⅢHard Drive
LOCALLY STORED FILE FORMAT MP4
RECORDING MODES 1 mixed + 3 individual original
BACKUP AND INTEGRATION FTP/ SFTP/ Opencast/ Panopto/ Kaltura/ AREC MediaCenter
LIVE STREAMING (RTMP) 2
VIDEO SWITCHER Yes, through AREC Online Director (web-based and desktop applications), Interactive Graphical User Interface (GUI), and Mini Controller web interface for mobile devices
VIDEO MANAGER Yes, through web-based AREC Video Manager
RS-232 CONTROL AND HTTP NETWORK API Yes
