NAV E 101 DTP

1G Pro AV over IP Encoder with DTP Input

Key Features

Works with over 40 wallplate and floor box DTP transmitters available in a variety of architectural form factors. DisplayPort, DVI and HDMI inputs available in MK, EU, and decorator-style packages
Converts, encodes, and streams video and audio signals from DTP transmitters over 1 Gbps Ethernet networks
Supports HDMI 2.0 at resolutions up to 4K/30 @ 4:4:4
PURE3® Codec
PURE3 Intelligent Selective Streaming
Interoperable with 1 and 10 Gbps NAV endpoints

The NAV E 101 DTP is the industry’s first encoder to bridge DTP Systems with NAV Pro AV over IP. It accepts an input signal from any DTP System transmitter and streams ultra-low latency, high-quality content over standard Gigabit Ethernet networks. Extron’s patented PURE3® codec delivers groundbreaking performance with high quality video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV E 101 DTP is fully compatible with NAV® 1 and 10 Gigabit Ethernet decoders, increasing range and scalability for large deployments. Support for embedded digital HDMI and AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. The NAV E 101 DTP is purpose-built to support secure, demanding professional AV applications.

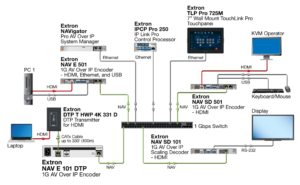

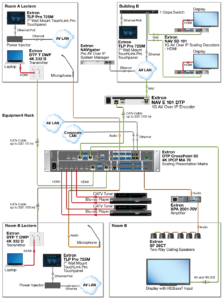

DTP Wallplate

Meeting Room

Remote Overflow Room

NAV E 101 DTP

specification

Frame rate¹

24, 25, 30, 50, or 60 fps

Chroma sampling¹

4:4:4, 4:2:2, or 4:2:0

Color bit depth¹

8 bits per color

Signal Type

DVI v1.0, HDMI v1.4, HDCP v1.4 and v2.3

Max. video data rate

10.2 Gbps (3.4 Gbps per color)

NOTE	¹Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate* to determine video parameters supported by this data rate.*

Video input and loop through

NOTE	*Appropriate DVI-D to HDMI or DisplayPort to HDMI cables or adapters are required for DVI or DisplayPort signal loop-through.

Number/signal type

1 DTP
1 digital HDMI video (loop through)

Connectors

1 female RJ-45 (input)
1 female HDMI type A (loop through)

Resolution range

Up to 2560×1600* @ 60 Hz or
4K (4096×2160) @ 30 Hz, UHD (3840×2160) @ 30 Hz,
4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
(* reduced blanking)

Standards

DVI v1.0, HDMI v1.4, HDCP v1.4/v2.3

Video processing

Digital sampling

8 or 10 bits per color; 300 MHz pixel clock maximum

Compression

PURE3^®

Bit rate

250 Mbps to 900 Mbps

Latency

<1 frame (encode/decode)**

NOTE	**Indicates minimum end-to-end latency. Network and video processing dependencies may apply.

Video Output stream

Number/signal type

1 PURE3 digital video over IP

Connector

1 RJ-45 connector

Model	Version Description	Part #
NAV E 101 DTP New	1G Pro AV over IP Encoder with DTP	60-1525-15
Remote Commissioning – NAV	Remote Commissioning for NAV	Call
Onsite Commissioning – NAV	Onsite Commissioning for NAV	Call
