NAV E 511

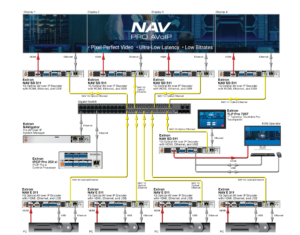

The NAV E 511 is a Pro AV over IP encoder that streams ultra-low latency, high quality HDMI video, audio, USB 2.0, and Ethernet signals over standard 1 Gbps optical Ethernet. Using the Extron patented PURE3® codec, the NAV® Series delivers groundbreaking performance with real-time, lossless video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling. The NAV E 511 is fully compatible with NAV 1 and 10 Gbps decoders, increasing flexibility, range, and scalability for large deployments. Support for embedded digital HDMI and AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

  Emergency Operation Center with WindoWall®

NAV E 511
specification
Frame rate2	24, 25, 30, 50, or 60 fps
Chroma sampling2	4:4:4, 4:2:2, or 4:2:0
Color bit depth2	8, or 10 bits per color
Signal Type	DVI v 1.0, HDMI v1.4 and v2.0, HDCP v1.4 and v2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE 14096 x 2160 @ 50-60 Hz is available only for HDMI connectors.
NOTE 2Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video input and loop through
NOTE *Appropriate DVI-D to HDMI or DisplayPort to HDMI cables or adapters are required for DVI or DisplayPort signal input.
Number/signal type	1 digital HDMI video* 1 digital HDMI video (loop through)
Connectors	2 female HDMI type A: 1 for input, 1 for loop through
Resolution range	Up to 4K (4096×2160 at 60 Hz) and UHD (3840×2160 at 60 Hz)
Standards	DVI v1.0, HDMI v1.4 and v2.0, HDCP v1.4/v2.3
Video processing
Digital sampling	8 or 10 bits per color; 600 MHz pixel clock maximum
Compression	PURE3®
Bit rate	250 Mbps to 900 Mbps
Latency	<1 frame (encode/decode)**
NOTE **Indicates minimum latency. Network and video processing dependencies apply.
Video Output stream
Number/signal type	1 PURE3 digital video over IP
Connector	1 SFP connector (SM or MM)
Audio
Gain	Analog to Analog: -6.5dBu balanced, -12.5 unbalanced ​HDMI to Analog: -5.3dBu balanced, -11.3 unbalanced
Frequency response	20 Hz to 20 kHz, +0.5 dB
THD + Noise	<0.1% @ 20 Hz to 20 kHz at nominal level
S/N	Analog to Digital: >90dB, at Full scale output, unweighted Digital to Analog: >90dB, at Maximum balanced output, unweighted ​Analog to Analog: >90dB, at Maximum balanced output, unweighted
Crosstalk	<-80 dB @ 1 kHz, fully loaded
Stereo channel separation	>80 dB @ 1 kHz
Sampling Rates	32, 44.1, 48 kHz
Bit depths
