SG1850S

 3G-SDI LCD Monitor 18.5" wide

  • Full HD resolution
  • 3G-SDI input / output interface
  • Support SMPTE 424M/SMPTE 292M/SMPTE 259M(Lv.A/B)
  • Support both analog and digital signal inputs HDMI / DVI-D / VGA / S-video / video interface
  • HDCP compliant
  • Attachable Cable clamp to prevent cable dis-connection
  • P-in-P and P-by-P support
  • Solid metal housing with a toughness design for 24/7 operation
  • Compatible with VESA standard 100x100mm for stands and wall mounting
  • Carry Handle

Introduction

SG1850S adopts LED liquid crystal panel with full HD resolution (1920×1080), wide viewing angle (horizontal 178°/ vertical 178°) and high contrast (1000:1). It is a professional multimedia display with SDI / HDMI / DVI-D / VGA / S-video / composite video (BNC) input terminals.

SDI signal supports SMPTE 424M/SMPTE 292M/SMPTE 259M format, and different mapping methods for Level A and B. The SDI output can pass through the input SDI video signal, so daisy chaining between monitors is possible. It supports video signal input up to 1080p60 by HDMI and up to 1920 x 1080 by VGA. The HDMI interface also supports HDCP (High-bandwidth Digital Content Protection).※1

SG1850S features the P-in-P (picture in picture) function and P-by-P (picture by picture) function to meet the needs for the simultaneous display of two different (digital / analog) video signals on a screen.※2

SG1850S features rugged metal housings with toughness designs that can withstand a long period of use with 24/7 operation. They can also be integrated into industrial equipment. SG1850S have a carrying handle for easy carrying.

There are dedicated insertion holes for cable clamp beside each interface of HDMI, S -video, composite video input/output (BNC), audio input/output (RCA / 3.5mm), and power supply. By fixing the cable clamp, you can prevent the cable from being accidentally dropped off or loosened.

Optional upright stand [ Model number: SG_STD ] and AC adapter holder [ Model number: HLDR_001 ] for SG series are available. By using the dedicated upright stand, you can make the display stand on its own. The dedicated AC adapter holder is used to locate the AC adapter.

SG1850S is a professional multimedia display can be used for broadcasting, meeting room, digital signage, exhibitions, educational facilities, showrooms, factory lines, application, etc.

Features

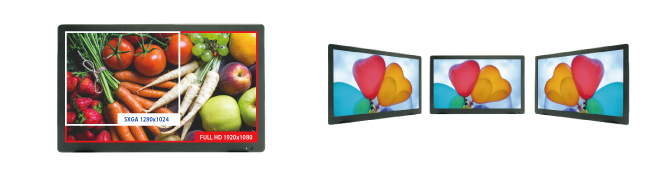

Full HD resolution

High resolution (1920×1080), wide viewing angle (horizontal 178°/vertical 178°) and high contrast (1000:1) full HD LCD panel.

High resolution, wide viewing angle, high contrast ultra high definition LCD panel

3G-SDI input/output interface

Equipped with an SDI input interface compatible with SMPTE424M/SMPTE 292M/SMPTE 259M format. It also has an SDI output interface that allows pass-through output of the input SDI signal. This allows the SDI input signal to be connected to other video recording devices, LCD monitors, etc.

3G-SDI input/output interface

Support SMPTE 424M / SMPTE 292M / SMPTE 259M (Lv.A/B)

3G-SDI interface supports both SDI level A and B format.

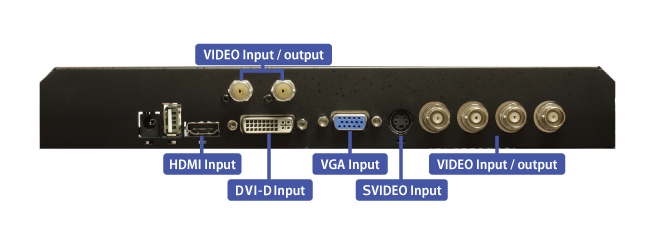

Supports both analog and digital signalinputs

Equipped with HDMI (HDCP compatible), DVI-D (HDCP compatible), mini D-Sub15 pin (VGA), S-video and composite video (BNC) interfaces, and supports both analog and digital inputs. SG1850S also supports HDCP (High-bandwidth Digital Content Protection) that displays content with copyright protection technology such as Blu-ray or game console contents. ※1

Support both analog and digital signal inputs HDMI/DVI-D/VGA/S-video/video input interface

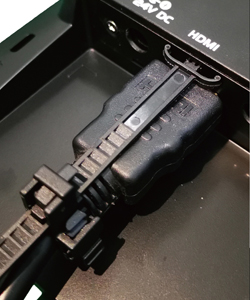

Cable clamp accessory to prevent cable dis-connection

HDMI/S-Video/Composite Video Input/Output (BNC)/Audio Input/Output (RCA/3.5mm) interfaces are with a cable clamp insertion holes to prevent disconnection at each interface terminal. Two cable clamps are provided as standard, accessory. By attaching the cable to the monitor, you can prevent accidental disconnection and loosening of the cable.

Cable clamp accessory to prevent cable dis-connection

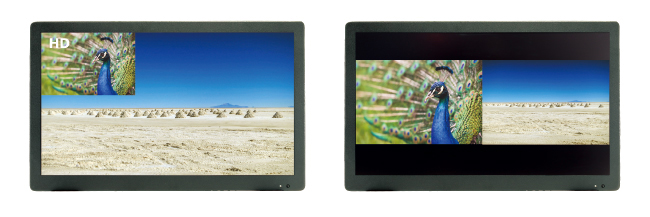

P-in-P (picture in picture) and P-by-P (picture by picture) support

P-by-P (picture by picture) function that divides the screen to two parts. Also, with the P-in-P function, you can change the position of the small window (select from the four corners) and size (select from large, medium, and small). This function can be used in various situations, such as displaying the surveillance camera and the computer screen on one display.※2

P in P (picture in picture) and P by P (picture by picture) support

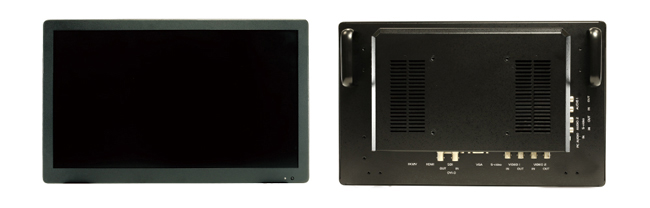

Solid metal housing and toughness design for 24/7 operation

Using a strong metal housing is suitable for embedding inside an industrial equipment. In addition, it is designed to withstand long-term use, and can be used for 24/7 operation.

Solid metal housing and toughness design for 24 hr continuous operation

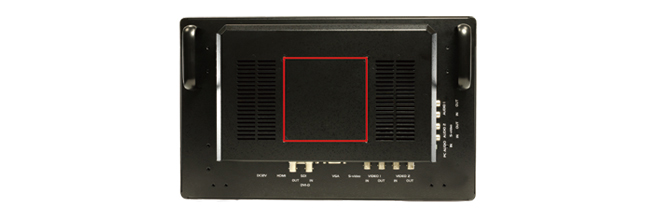

Compatible with VESA standard 100x100mm for stands and wall mounting

SG1850S has 100x100mm screw hole on the back of the mainunit. It fits with the commercially available VESA wall mounting.

Compatible with VESA standard 100x100mm for stands and wall hanging

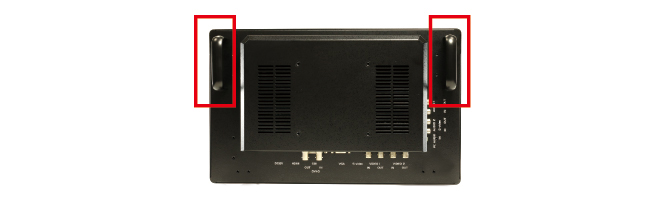

Carry Handle

SG1850S has carry handles that is convenient for carrying during the setup and installation.

Carry Handle

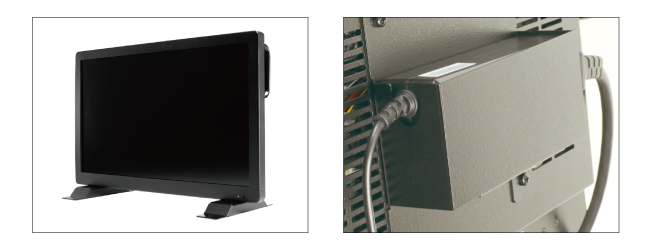

Optional upright stand [Model number: SG_STD] and AC adapter holder [Model number: HLDR_001]

Using a strong metal housing is suitable for embedding inside an industrial equipment. An upright stand exclusively for SG series monitor is available as an option. AC adapter holder attachable to the SG series by VESA 100×100 mm screw holes on the back is also available as an option.※4 ※5

Optional upright stand [Model number: SG_STD] and AC adapter holder[Model number: HLDR_001]

Product specifications

Product model number SG1850S
Screen size 18.5 inches
Aspect ratio wide 16:9
LCD type VA
Resolution 1920 x 1080
Brightness (cd/m2) 350
Contrast ratio 1000:1
Viewing angle 178°/178°(H/V)
Power supply DC12V/5A
Input 3G-SDI (BNC) / HDMI (HDCP compatible) / DVI-D (HDCP compatible) / VGA (D-Sub15 pin) / Video (BNC) x 2 / S video / audio (RCA) x 2 / PC audio (3.5mm mini) x 1
Output 3G-SDI (BNC) / Video (BNC) x 2 / audio (RCA) x 2※3
Speaker 2W x 2 (L/R)
Power consumption 32W
Operating temperature 0℃~40℃
VESA (FPMPMI) standard 100 x 100 mm
External dimensions(WxHxD) 441.2 x 271.4 x 58(mm)
Weight about 3,600g
Included items AC adapter (AC adapter side / cable side) / cable fixing clamp x 2 / VGA cable / RCA red / white cable / remote control / warranty card
Certification standard FCC / CE / RoHS / PSE (AC adapter)

Supported Formats

Format Resolution Frequency(Hz)
SDI SMPTE 274M 576 50i
1080 50i
59.94i
60i
23.98p
24p
25p
29.97p
30p
SMPTE 296M 720 50p
59.94p
60p
SMPTE 425M(Level A/B対応) 1080 50p
59.94p
60p
HDMI 480i 59.94 / 60Hz
480p 59.94 / 60Hz
576i 50Hz
576p 50Hz
720p 50 / 59.94 / 60Hz
1080i 50 / 59.94 / 60Hz
1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60Hz
DVI-D 640×350 85Hz
640×400 85Hz
720×400 85Hz
640×480 59.94 / 60 / 67 / 72 / 75 / 85Hz
800×600 56 / 60 / 72 / 75 / 85Hz
832×624 75Hz
848×480 60Hz
852×480 60Hz
1024×576 60Hz
1024×768 60 / 70 / 72 / 75 / 85Hz
1152×864 75Hz
1152×870 75Hz
1280×768 60 / 75 / 85Hz
1280×720 60Hz
1280×960 60 / 85Hz
1280×1024 60 / 75 / 85Hz
1360×768 60Hz
1400×768 60Hz
1400×1050 60Hz
1440×960 72Hz
1600×1024 60Hz
1680×1050 60Hz
1600×1200 60 / 65 / 70 / 75Hz
1792×1344 60Hz
1920×1080 60Hz
VGA 640×350 85Hz
640×400 85Hz
640×480 59.94 / 60 / 67 /72 / 75 / 85Hz
720×400 85Hz
800×600 56 / 60 / 72 / 75Hz
1024×768 60 / 70 / 75Hz
1152×864 75Hz
1152×870 75Hz
1280×720 60Hz
1280×768 60 / 75Hz
1280×960 60Hz
1280×1024 60 / 75 / 85Hz
1360×768 60Hz
1365×1024 75Hz
1680×1050 60Hz
1600×1200 60 / 70 / 75 Hz
1920×1080 60Hz
Video/ S Video NTSC 720X480、704X480
