COH-TR6L

UHD+ 2×1 HDMI/DP to IP AV over IP Transceiver

Visually lossless compression with zero latency
Signal transmission interfaces with 10-Gigabit Ethernet switches via a single SFP+ fiber module
Independent breakaway A/V matrix switching (requires optional control center/software)
Pass-through of 10/12-bit HDR sources (Genlock modes only)
Pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI sources
Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center/software)
Supports the use of an external control center or control software to provide expanded functionality (Contact your authorized dealer for more information)

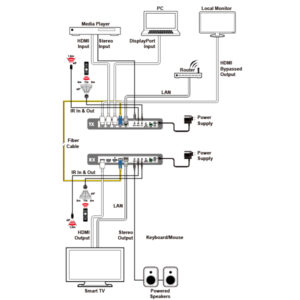

This Transceiver is designed for high-quality, IP routable, AV extension with zero latency. Each single Transceiver can be configured as either a Transmitter or a Receiver depending on the requirement of installation facility. The 4K@60 high quality video with HDR 10 bits and multi-channel HD Bitstream audio are able to transmit in pass through mode over SFP+ fiber module up to 30km extension.

Specifications

Interfaces
Input Port	1 HDMI (Type-A) 1 DisplayPort
Output Port	1 HDMI (Type-A)
Bi-directional Port	1 10GbE LAN (SFP+)
Control I/O	1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (3-pin Terminal Block) 1 Ethernet (RJ-45)
Audio	1 Unbalanced Stereo (3.5mm Transmitter: Auido In or Out (depends configuration) Receiver: Audio Out
Service Port	1 USB (Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	HDCP 2.X
Input Signal Type	4096x2160p@60 8bit YUV 4:4:4, HDR10
Output Signal Type	4096x2160p@60 8bit YUV 4:4:4, HDR10

Resolutions
Maximum Input	HDMI	4096×2160p@60 2560×1600p@60RB
	DisplayPort	4096×2160p@60 2560×1600p@60RB
	Ethernet	4096×2160p@60 2560×1600p@60RB
Maximum Output	HDMI	4096×2160p@60 2560×1600p@60RB
	Ethernet	4096×2160p@60 2560×1600p@60RB

Audio
Digital Formats	HDMI	8CH LPCM, Bitstream, HD Bitstream
	DisplayPort	8CH LPCM, Bitstream, HD Bitstream
Analog Formats	Unbalanced	2 Channel
Line Level	Frequency Response: < ±0.5dB (20Hz to 20kHz) THD: < 0.02% (20Hz to 20kHz) S/N Ratio: > 80dB (1kHz with 0dBFS) Crosstalk: < −80dB (10kHz, Vin=0dBFS)

Power
Power Supply	12V/3A (Locking)
Power Consumption	25W

Enclosure
Chassis Material	Metal(Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5 mm × 25 mm × 158mm [Case Only] 231.5 mm × 25 mm × 166.7mm [All Inclusive]
Weight	518g

Field Firmware Update
Interface	Mini-USB to PC

Ordering Information
Model No.	Product Description
COH-TR6L	UHD+ 2×1 HDMI/DP to IP AV over IP Transceiver
CDPS-CS7-S	IP Master Controller (SDVoE)
