Explore creativity and enhance productivity with the MaitreView™ 4KPro.
The core engine of the MaitreView™ 4KPro is powered by the advanced 4K video processing algorithms driving on FPGA.
All inputs and outputs of the MaitreView™ 4KPro support uncompressed 4K/60Hz 4:4:4 (18 Gbps bandwidth) that never loses any details on important data.

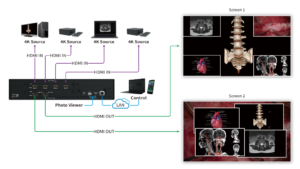

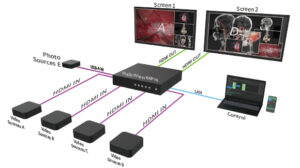

4x HDMI inputs and 2x HDMI outputs with independent layouts on each output offer magnificently flexibility to most scenarios for conferencing and collaborative work.
Real-time Drag & Drop to deploy information from 4 inputs in any size and position to display on 2 outputs.
Any way clients like and anywhere clients want to show all information on 2 screens.
The MaitreView™ 4KPro won Best of Show Awards at ISE and InfoComm from AV Technology.
TAA (Trade Agreements Act) requires that the U.S. Government purchases products that are produced or undergo a "substantial transformation" in Taiwan or an approved country.
In order to meet and exceed the TAA standards, AV LINK’s major components of products are designed, manufactured, assembled, and tested in Taiwan and AV LINK also keeps checking the origin of parts of the products.
Unparalleled Video Processing Engine
The MaitreView™ is powered by the most advanced algorithms driving on FPGA (Field Programmable Gate Array) as a core technology for video processing from 720p, 1080p FHD, to 4K/60Hz 4:4:4.
Uncompressed
4K/60Hz 4:4:4
The optimized MaitreView™'s video engine processes UNCOMPRESSED 4K/60Hz 4:4:4 (18 Gbps bandwidth) on all inputs and outputs.
Simple to Use
"Drag & Drop"
No more complex controlling setups. Just simply drag and drop to deploy the layout anytime and anyway.
Never bridled by templated or fixed layouts.
5 split layers (4K)
each output
Enhance productivity and creativity.
The MaitreView™ 4KPro offers real-time 5 split layers deploying on one screen, and independent layouts processing on 2 outputs.
Independent layouts on 2 outputs
The MaitreView™ 4KPro delivers independent layouts processing on 2 outputs.
Never let fixed and copied layouts occupy all your output screens and bore the meeting.
Seamless Switching
The MaitreView™'s video engine offers real-time 4K pixel processing for seamless switching.
Windows software and tablet APP with a user-friendly interface for remote control, and front panel switching supported.
Side By Side
Display sources side by side for easy comparison. Speed up decision-making and increase productivity.
| Video Processing | |
| Technology | FPGA |
| Resolution | Inputs & Outputs up to 4K/60Hz 4:4:4 |
| Max. number of split layer | 5 split layers on each output port |
| Regions | |
| Borders | Configurable color & thickness |
| OSD | Available on all regions with user renames |
| Seamless switch | Available when changing sources or Presets |
| Configuration & Control | |
| Control ports | RJ45 with Gigabit Ethernet |
| PC remote control | Windows environment with .NET Framework 4.5 |
| Pad remote control | Tablet APP Supported |
| 3rd party controller connectivity | API |
| Local control | Front panel buttons |
| Video Inputs | |
| Input connectors | 4 x HDMI – HDMI 2.0 & HDCP 2.2 compatibility |
| Resolution | 4K/60Hz 4:4:4 on all inputs |
| Video Output | |
| Output connectors | 2 x HDMI – HDMI 2.0 & HDCP 2.2 compatibility |
| Resolution | 4K/60Hz 4:4:4 on all outputs |
| Photo Viewer /Images | |
| Interfaces | USB2.0, SDIO |
| Formats | JPG, JPEG, PNG, BMP |
| Audio Output | |
| Connector | 3.5mm Jack |
| Supported channels | 2 Stereo pairs |
| Mechanical | |
| Size (H x W x D ) | 349 x 388 x 76.2 mm 349 x 487 x 76.2 mm with mounting kit |
| Weight | 4885g 5080g with mounting kit |
